3D Point World Models

AData generation

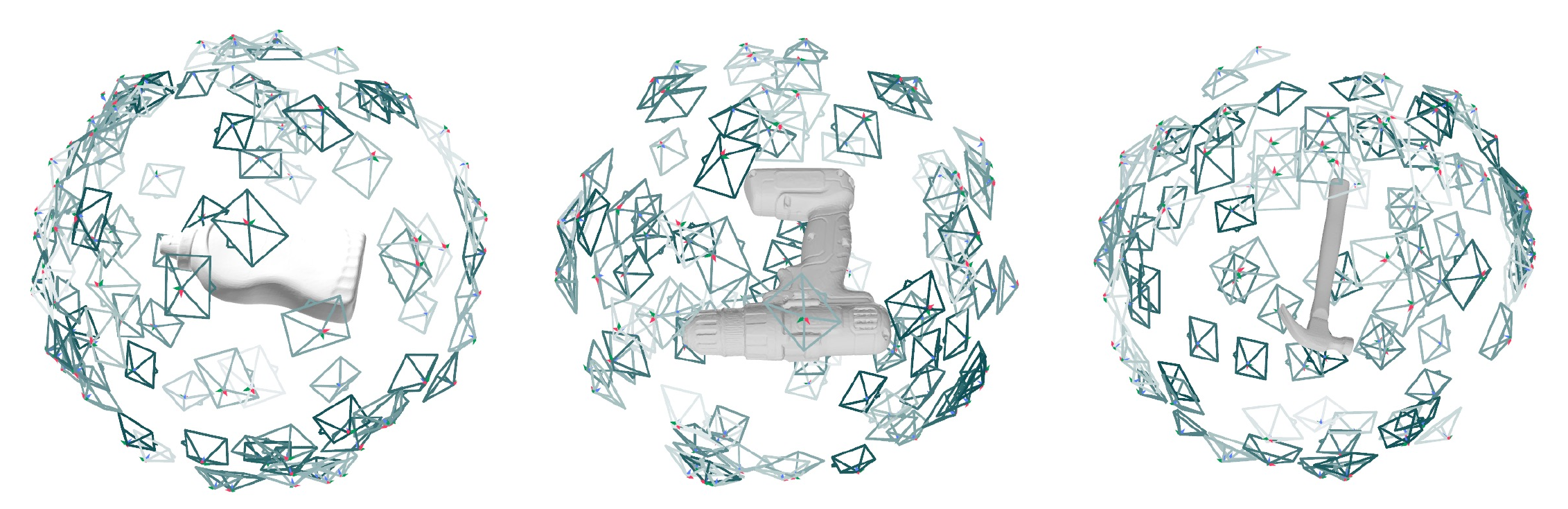

Point completion. For each YCB object we render depth maps from 100 random viewpoints on a sphere of radius 1 looking at the origin (object centred), and back-project them to partial point clouds.

Dynamics modeling. For all ManiSkill and DexMimicGen tasks a custom wrapper samples complete point clouds from object, part and geom meshes. To get correspondences, points are sampled once in the canonical frame and rigid-body poses are applied to every entity. Only one canonical cloud and len(traj) transformation matrices are stored, instead of a cloud per step.

BModel details & hyperparameters

• Batch norm is replaced with layer norm; each of the four encoder stages is reduced to depth 2 for the smaller dataset.
• RPE is enabled in alternating encoder/decoder blocks; patch size is 48 where RPE is on and 256 where it is off.
• Bottleneck dimension d = 256. Action conditioning uses CrossAttn and SelfAttn modules of three layers with eight heads each.
• FlashAttention is used across all attention modules, including cross- and self-attention.

You are a vision-language model assisting a robot with a manipulation task.

Given:
1. A natural-language task description.
2. An RGB image of the current scene.

Your goal is to identify all objects that are relevant to successfully
completing the task and provide one or more 2D point locations for each
relevant object.

Instructions:
1. Read the task description carefully and determine which physical objects
   the robot must interact with, manipulate, move, avoid, or otherwise
   reason about to complete the task.
2. In the image, locate each task-relevant object.
3. For each relevant object, select a 2D point that lies clearly INSIDE the
   visible region of that object.
   - The point should be near the center of the visible portion of the object
     whenever possible.
   - Do not place the point on the object's boundary.
   - Do not place the point on the background, another object, or an
     occluding object.
   - Prefer points that are visually unambiguous and far from object boundaries.
   - If an object is partially occluded, place the point on the visible portion.
...
Output format:
[ { "object": "<short object description>", "point": [x, y] }, ... ]

Example:
Task: "Pick up the red mug and place it inside the bowl."
Output:
[ {"object": "red mug", "point": [312, 241]},
  {"object": "bowl",    "point": [487, 326]} ]

Be precise: every point must fall inside the corresponding object's visible pixels.

CCost function specification

We prompt Gemini 2.5 Flash with the task description and the detected-objects JSON to produce a PyTorch cost_fn(cfg, point, info) that returns a scalar (lower is better). The prompt asks the model to:

• infer the task objective and use only objects present in the JSON, including ones the robot could collide with;
• operate on predicted point clouds (centroids, distances, containment, proximity) and use info only for what clouds cannot give (grasp state, task stage, goals);
• measure task progress, with stage-dependent terms for multi-step tasks;
• add collision costs that complement rather than overwhelm the task term;
• prefer smooth costs (Euclidean distance, tanh, exponentials) over hard thresholds; return one scalar; keep it simple.

Below is an example cost function adapted almost directly from the ManiSkill PickCube reward.

def cost_fn_pick_cube(cfg, point, info):
    """Cost function for the PickCube-v1 task."""
    goal_xyz = torch.tensor(info['extra']['goal_pos'], device=cfg.device)

    left_gripper_xyz  = point['left_gripper']
    right_gripper_xyz = point['right_gripper']
    cube_xyz          = point['cube']

    cube_center_xyz = cube_xyz.mean(dim=0)
    tcp_xyz = (left_gripper_xyz.mean(dim=0) +
               right_gripper_xyz.mean(dim=0)) / 2

    tcp_to_cube_dist = torch.norm(cube_center_xyz - tcp_xyz, dim=0)
    reaching_reward  = 1.0 - torch.tanh(5.0 * tcp_to_cube_dist)

    cube_to_goal_dist = torch.norm(cube_center_xyz - goal_xyz, dim=0)
    place_reward      = 1.0 - torch.tanh(5.0 * cube_to_goal_dist)

    contact_reward = 1.0 if info['grasped'] else 0.0

    if info['grasped']:
        total_cost = -place_reward
    else:
        total_cost = -(reaching_reward + contact_reward)

    return total_cost

Contact is not modeled explicitly: we treat the object as grasped when the gripper TCP is within 2.5 cm of the object centre (info['grasped'] = True). Thresholding the gripper–object–gripper intersection was hard to tune in practice; explicit contact modeling in point world models is left for future work.

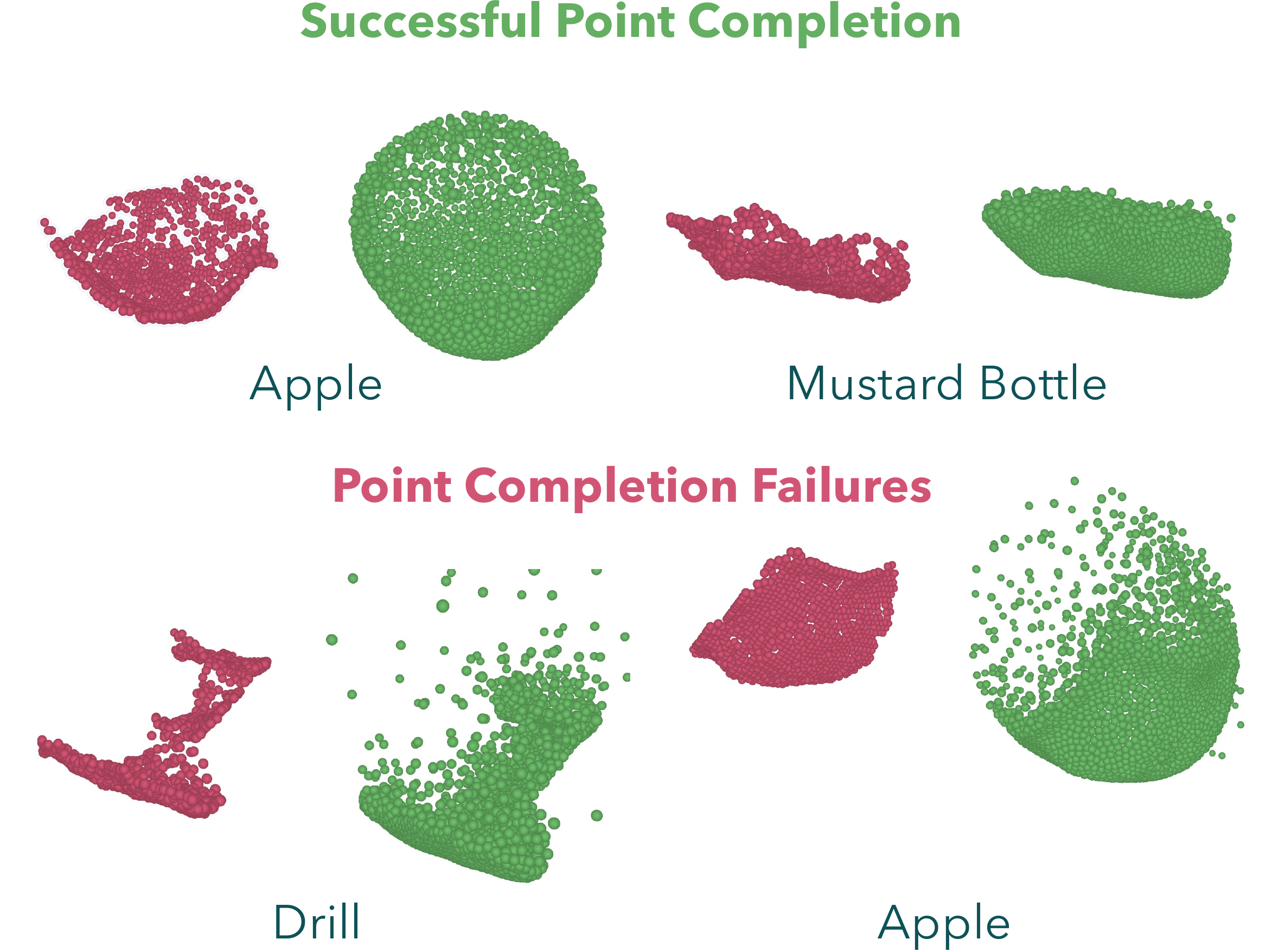

DFailure scenarios

Completion is trained on partial clouds rendered from single meshes at 100 viewpoints, so occlusions caused by other objects are never seen. Noisy points outside the object boundary are also a common failure. Remaining real-world failures are also attributed to biased centre-of-mass estimates.

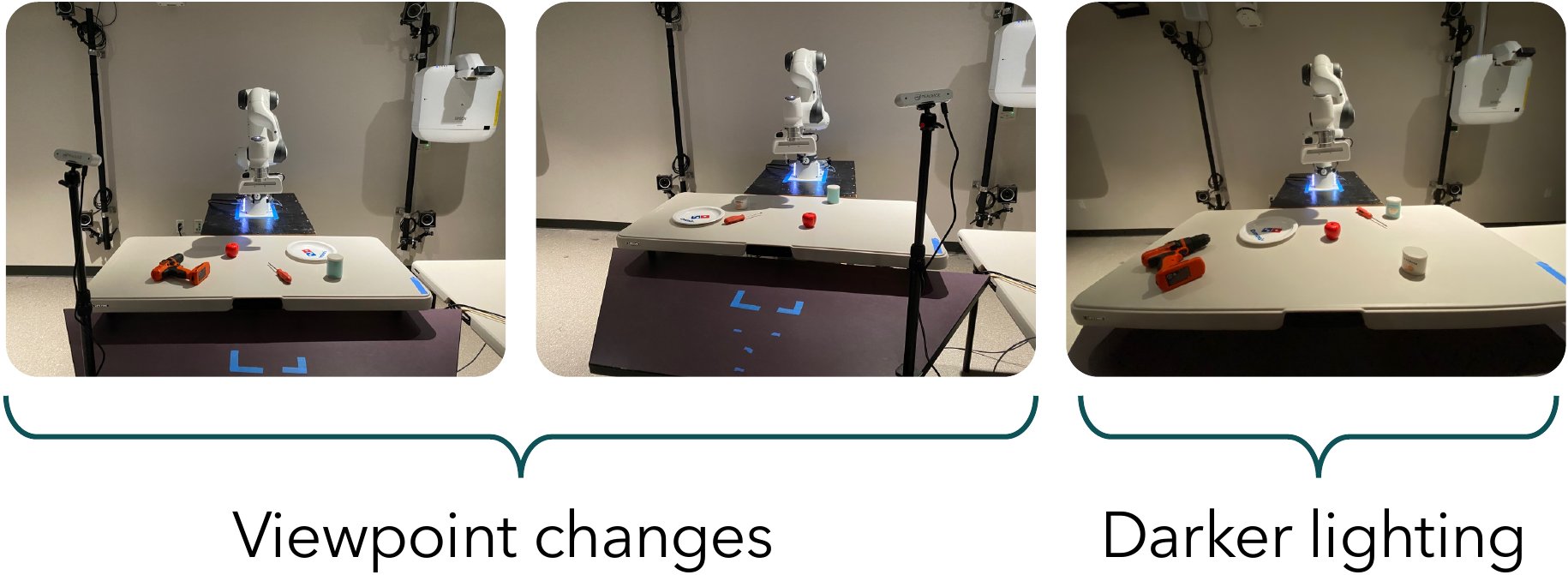

ERobustness to lighting and camera viewpoint

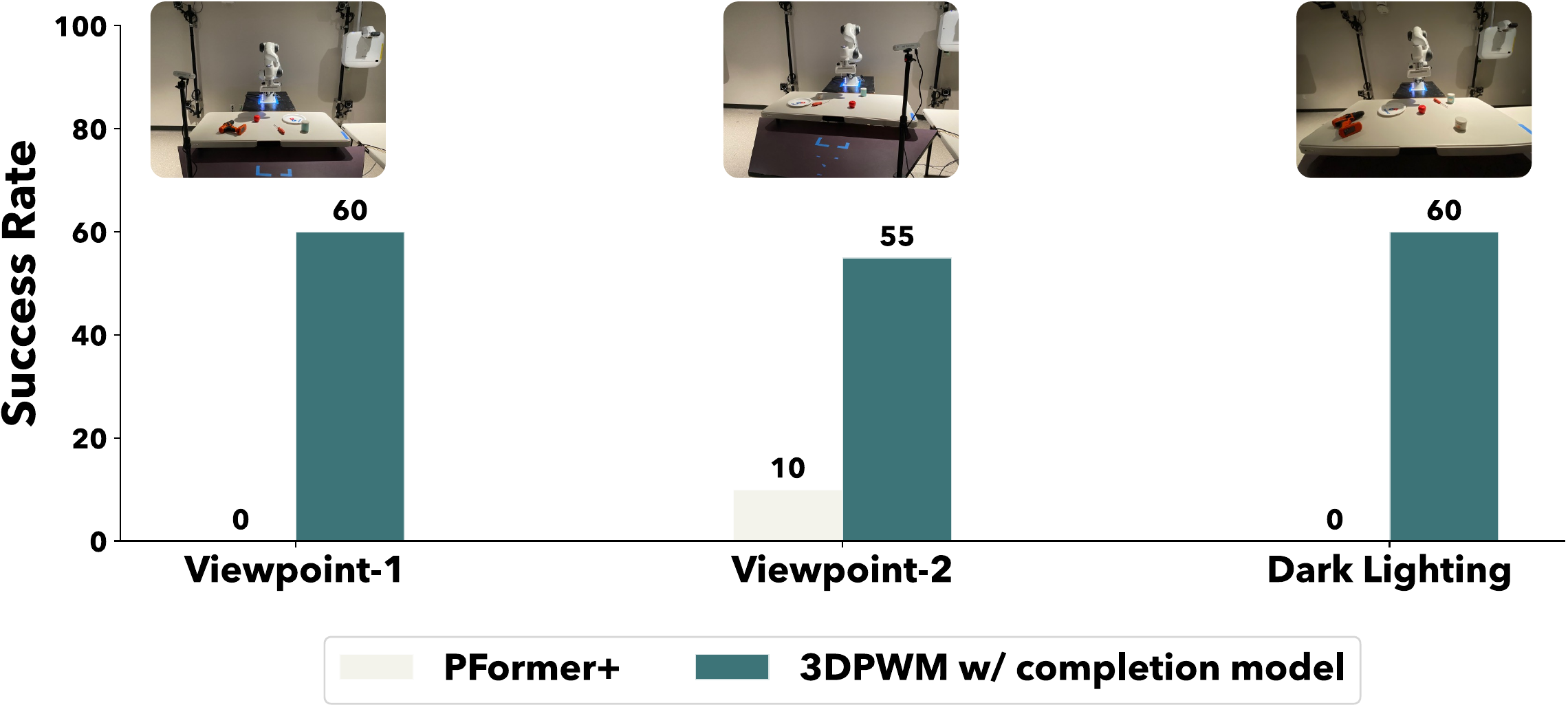

Policies trained on calibrated point clouds are generally robust to lighting and viewpoint shifts [20, 65]; our PickApple results (20 trials per plot) agree.

FComparison to GNN-based methods

Gaussian-splatting methods such as GBND [24] combine Gaussian point dynamics with splat rendering. As 3DPWM models dynamics rather than rendering, we compare against GBND's GNN dynamics. Lower Chamfer and higher correlation are better; best in bold.

Integrating a rendering pipeline into 3DPWM, with 3DPWM as the dynamics model, is future work.

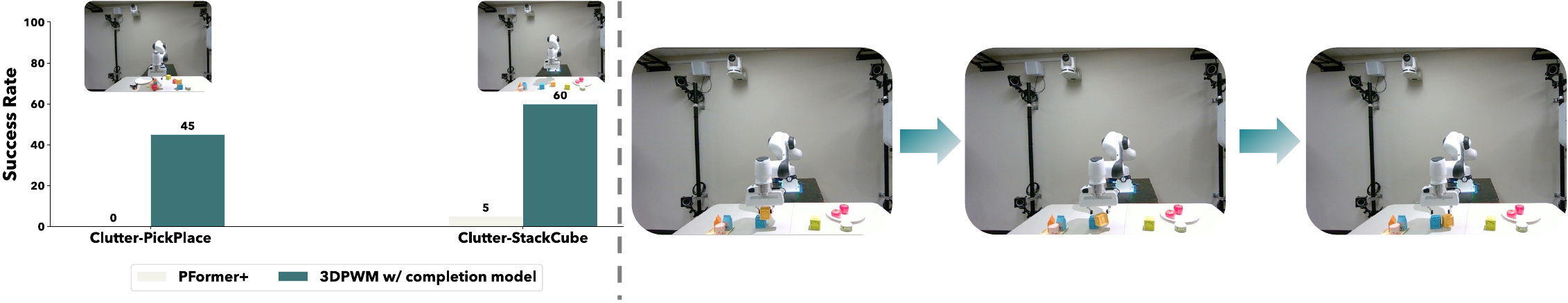

GSim2Real in cluttered environments

PickPlaceApple: the apple starts near a group of clutter objects and the cost adds a heuristic collision penalty. StackCube: stack a yellow cube on a blue cube in a moderately cluttered scene; precise placement is critical.

HBaselines: ParticleFormer

Each partial input has point velocities and a one-hot instance segmentation vector. We run two variants, both trained on segmented partial clouds with the authors' hybrid Chamfer + Hausdorff loss: PFormer (3-layer) – re-implementation with three transformer layers as in the original paper; and PFormer+ – encoder/decoder replaced by our PTv3 architecture.

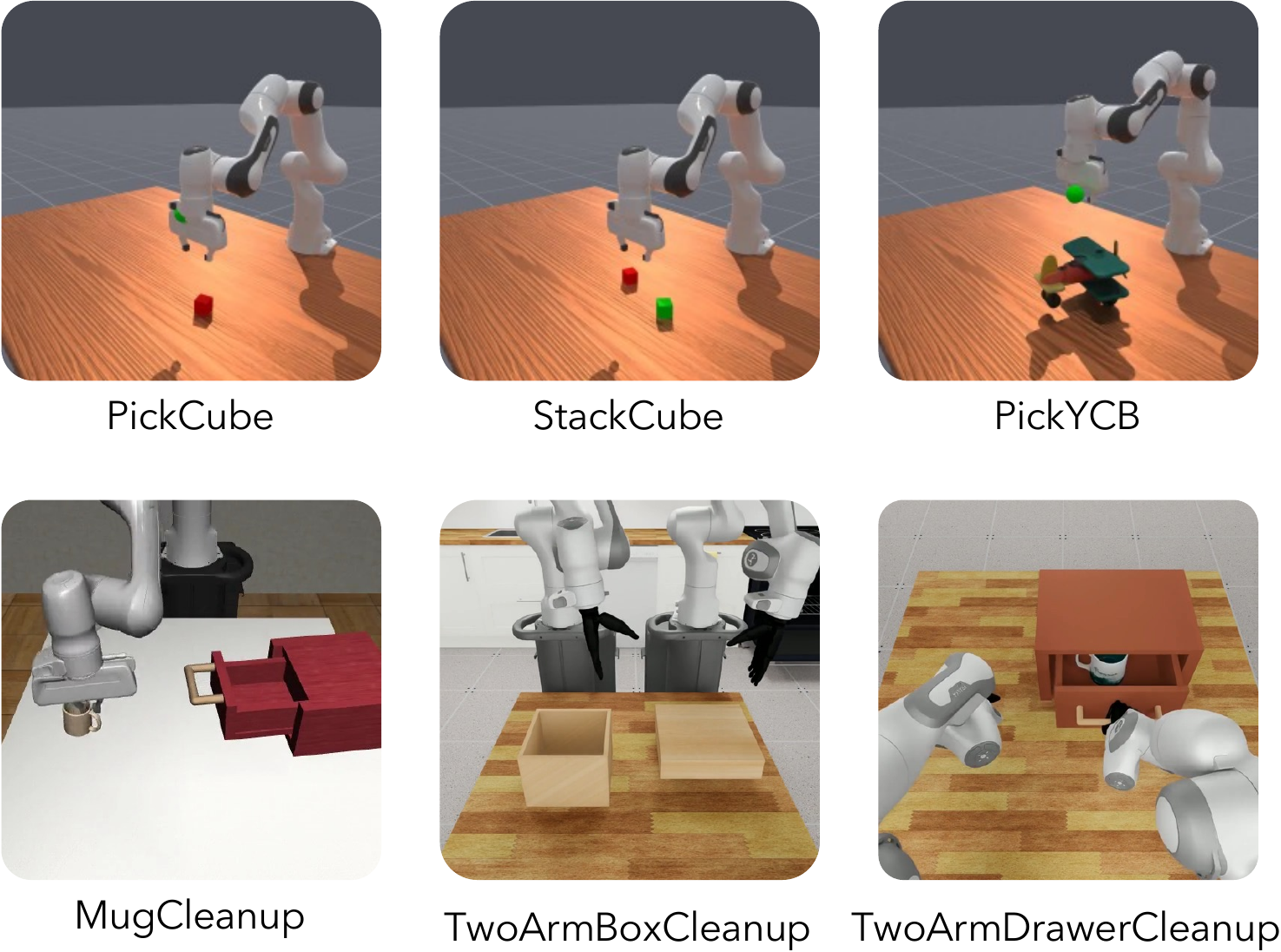

IEnvironments

Table VI. Complete-cloud points and action dimension per task. The dexterous two-arm tasks are much higher-dimensional: 24-d actions (6 pose + 6 finger dimensions per arm, versus 7 for the parallel gripper) and up to 12,000 points (versus 1,200), and MugCleanup already uses 8,192 points.

JThings we tried that did not work

Shared here in the hope that they help others.

• SAM3D instead of custom-trained completion. The completions generalize to many common objects but do not align with the partial input, even when given sensor depth rather than estimated depth. This is a known issue (GitHub issues #79 and #162 of that repository).
• Depth foundation models to avoid noisy completions (MoGe-2, Depth Anything 3). Depth and back-projected clouds were very clean, but (a) objects were misaligned in the real world, as with SAM3D, and (b) small details, depending on viewpoint, were missed – details that can be crucial for manipulation.
